Luxor ZD/ZDC

Connecting Satellite Controllers

Tabs

Read Article

Step 1

Disconnect power to Primary and Satellite controllers.

Step 2

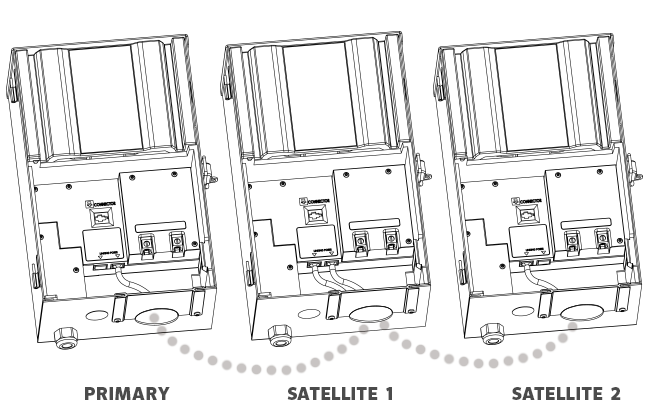

Insert one end of Cat5/5e/6 cable into Linking Port of Primary Controller. Note: Left or Right port can be used.

Step 3

Insert the opposite end of Cat5/5e/6 cable into Linking Port of desired Satellite controller.

Step 4

If the site requires multiple Satellite controllers, insert new Cat5/5e/6 cable into unused Linking Port of previous Satellite controller.

Step 5

Insert the opposite end of Cat5/5e/6 cable into unused Linking Port of next Satellite controller. Continue this connection method until all Satellite units are installed in series with the Primary controller.
