Overview

Created for small scale elements, the CC combines smart style and functional ability. Our Driver-OnBoard technology uses long-life LEDs which provide excellent illumination. The CC fuses high-design with precision engineering, making it an ideal selection.

Quick Facts

Brass construction
Cree® Integrated LEDs
Natural brass or antique finishes
ProAim™ adjustability
Color temperature filters
Compatible with Luxor® technology
Phase and PWM dimmable
Input voltage: 10-15V

Specs

Copy Link

CC Spec Chart

Output	1LED	3LED	3LEDT	ZDC
Total Lumens†	116	227	115	109
Input Voltage	10 to 15V	10 to 15V	10 to 15V	11 to 15V
Input Power	1.9 W	4.0 W	4.2	6.0
Power Consumption (VA)	2.2 W	4.4 W	4.5	7.2
Efficacy (lm/W)	58	59	33	34
Color Rendering Index (CRI)	83	83	--	81
Center Beam Candlepower*
Flood (35)	272	528	496	142
Dimming
Primary Dimming (Transformer)	Consult transformer specifications
Secondary Dimming (Fixture)	Phase-cut**	Phase-cut**	Phase-cut**	Luxor
RGBW Available	No	No	No	Yes
Luxor Compatibility
Default	Zoning	Zoning	--	Zoning
ZD Option	Zoning/Dimming	Zoning/Dimming	Zoning/Dimming	Zoning/Dimming
ZDC Option	--	--	--	--
Minimum Rated Life (L70)	72,000 Hrs	72,000 Hrs	55,000 Hrs	55,000 Hrs

* Information for Wide Flood and angled shroud available in IES files
** For optimal performance, use a trailing-edge, phase-cut dimmer
† Measured using the 2,700K option

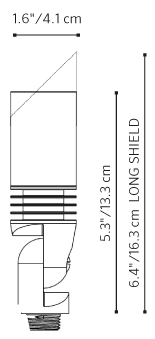

CC Dimensions

CC 1LED - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical: 22.9 °	Horizontal: °
	13 fc (134 lx)	2’ (0.5 m)
	3 fc (33 lx)	3’ (1.0 m)
	1.4 fc (15 lx)	5’ (1.6 m)
	0.8 fc (9 lx)	7’ (2.0 m)
	0.5 fc (5 lx)	8’ (2.6 m)
	0.4 fc (4 lx)	10 (3.1 m)’

CC 3LED - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical: 22.4 °	Horizontal: °
	28 fc (305 lx)	2’ (0.5 m)
	7 fc (76 lx)	3’ (1.0 m)
	3 fc (35 lx)	5’ (1.6 m)
	2 fc (19 lx)	7’ (2.0 m)
	1.2 fc (13 lx)	8’ (2.6 m)
	0.8 fc (9 lx)	10 (3.1 m)’

CC 3LEDT - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical: 22.4 °	Horizontal: °
	29 fc (308 lx)	2’ (0.5 m)
	7 fc (70 lx)	3’ (1.0 m)
	3 fc (31 lx)	5’ (1.6 m)
	1.7 fc (18 lx)	7’ (2.0 m)
	1.1 fc (12 lx)	8’ (2.6 m)
	0.7 fc (8 lx)	10 (3.1 m)’

CC ZDC - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical: 48.2 °	Horizontal: °
	8 fc (83 lx)	4’ (1.2 m)
	2 fc (21 lx)	8’ (2.4 m)
	0.8 fc (9 lx)	12’ (3.5 m)
	0.5 fc (5 lx)	16’ (4.7 m)
	0.3 fc (3 lx)	19’ (5.9 m)
	0.2 fc (2 lx)	23’ (7.1 m)’

Materials

Machined C360 brass hous- ing, shroud, and knuckle with brass hardware.

Socket

Socket contains MoistureBlock™ technology, preventing moisture from wicking up into sealed areas of the fixture.

LED

Integrated module with Cree LEDs. Gold-plated connectors and conformal coated for maximum reliability and corrosion resistance. Proprietary on-board intelligent driver uses firmware-controlled temperature regulation, maximizing LED life. Field upgradeable and replaceable, the LEDs are rated to 50,000 hrs. Maximum drive current: 1 A.

Wiring

18 AWG (1 mm); SPT-1W; 220°F (105°C); 300V; 10' (3 m) length.

Power

Input 10-15VAC/VDC 50/60Hz. Remote transformer required (specify separately).

Optics

Polycarbonate color temperature adjustment lenses included with fixture: 2,700K (preinstalled), 3,900K (no lens), 4,500K, and 5,200K. Interchangeable optics for 10°, 20°, 30°-32°, or 55-58° distributions ordered pre- assembled to fixture. Color temperature and beam angle lenses field serviceable. For additional color filters, spread lenses, hex baffles, etc., use MR-11 sized accessories (MR-11: 1.38" (35 mm) dia. x 3.2 mm thickness). Beam angle is calculated using LM-79 method for SSL luminaires.

Housing

Machined brass housing with capacity for 1LED, 3LED, or ZDC integrated LEDs.

Lens

Tempered glass lens with shock resistance and high tolerance for thermal expansion and stress.

Hardware

Brass angle lock screw. Includes 10'' (250 mm) long slotted ground spike.

Finish

Options of natural brass finish, or antiqued finish with brushed (Antique Bronze) or tumbled (Antique Tumbled) effect. Antique finishes sealed with a clear TGIC powder coat layer.

Ambient Operating Temperature

0°F to 140°F (-18°C to 60°C)

Weight

1.5 lbs. (0.7 kg)

Control

ZD or ZDC utilizes Luxor technology to zone light fixtures in up to 250 groups, dim each group in 1% increments between 0 and 100%, or change to one of 30,000 colors with RGBW LEDs. Select the ZD option for zoning/dimming or ZDC for zoning/dimming/color. Standard fixture is zoneable with Luxor.

Glare Control

Machined brass shroud with 90° cutoff (standard) or 45° long shroud option.

knuckle

<p>Machined brass knuckle with ½"-14 (13 mm) NPSM threads. Compress and lock features prevent slip after installation. Complete adjustability over 220° of vertical adjustment.</p>

Sustainability

Innovation meets conservation in the design and manufacturing of our products. Where we can, we use recycled materials while maintaining superior functionality. Our LED products provide high-quality light at optimal energy efficiency, lifespan, and durability.
