ZW | FX Luminaire

Product Tabs

Overview

The ZW is a compact, fixed position, direct or indirect down light for grazing walls and other accent illumination needs.

Quick Facts

Down or up/down configurations
Powder-coated aluminum, natural stainless steel, or natural copper finishes
Cree® integrated LEDs
Compatible with Luxor® technology
Phase and PWM dimmable
Input voltage: 10–15 V

Specs

Copy Link

ZW Spec Chart

Output	1LED (DN)	1LED (UD)	3LED (DN)	3LED (UD)	ZDC
Total Lumens^†	56/66 (SS)	112/132 (SS)	179/212 (SS)	358/424 (SS)	--
Input Voltage	10 to 15V	10 to 15V	10 to 15V	10 to 15V	10 to 15V
Input Power (W)	2.0	4.0	4.2	8.4	6.0
VA	2.4	4.8	4.5	9.0	7.2
Efficacy (Lumens/Watt)	28/33 (SS)	28/33 (SS)	42/50 (SS)	42/50 (SS)	--
Color Rendering Index (CRI)	80+	80+	80+	80+	80+
Center Beam Candlepower*
Spot (17-20)	121/132 (SS)	121/132 (SS)	388/361 (SS)	388/361 (SS)	--
Dimming	PMW, Phase	PMW, Phase	PMW, Phase	PMW, Phase	--
RGBW Available	No	No	No	No	Yes
Luxor Compatability
Default	Zoning	Zoning	Zoning	Zoning	--
ZD Option	Zoning/Diming	Zoning/Diming	Zoning/Diming	Zoning/Diming	--
ZDC Option	--	--	--	--	Zoning/Diming/Color
Minimum Rated Life (L90 B10)	55,000 Hrs avg	55,000 Hrs avg	55,000 Hrs avg	55,000 Hrs avg	55,000 Hrs avg

† Measured using the 3,900K CCT lens. Multipliers for other CCTs include 0.80 (2,700K), 0.65 (4,500K), and 0.65 (5,200K).
* Information not available for Flood or Wide Flood.

ZW Dimensions

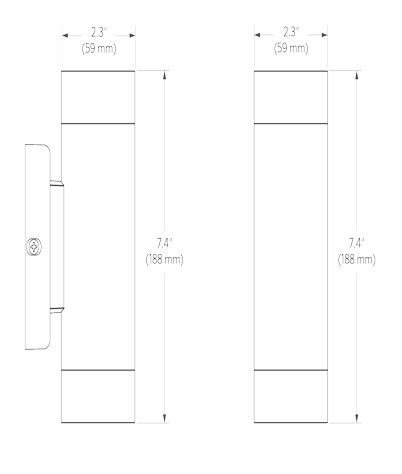

UD Powder-coat and CU finishes

DN Powder-coat and CU finishes

UD SS finish only

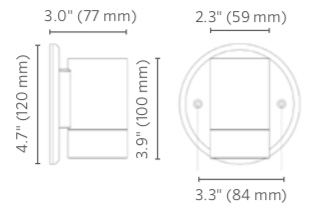

DN SS finish only

ZW 1LED DN - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical : 30.3 °
2.0’ (0.6 m)	30.2 fc (325 lx)	1.1’ (0.3 m)
4.0’ (1.2 m)	7.5 fc (81 lx)	2.2’ (0.7 m)
6.0’ (1.8 m)	3.4 fc (37 lx)	3.3’ (1.0 m)
8.0’ (2.4 m)	1.9 fc (21 lx)	4.3’ (1.3 m)
10.0’ (3.1 m)	1.2 fc (13 lx)	5.4’ (1.7 m)
12.0’ (3.7 m)	0.8 fc (9 lx)	6.5’ (2.0 m)

ZW 1LED DN SS - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical : 30.7 °
2.0’ (0.6 m)	32.9 fc (354 lx)	1.1’ (0.3 m)
4.0’ (1.2 m)	8.2 fc (88 lx)	2.2’ (0.7 m)
6.0’ (1.8 m)	3.7 fc (40 lx)	3.3’ (1.0 m)
8.0’ (2.4 m)	2.1 fc (23 lx)	4.4’ (1.3 m)
10.0’ (3.1 m)	1.3 fc (14 lx)	5.5’ (1.7 m)
12.0’ (3.7 m)	0.9 fc (10 lx)	6.6’ (2.0 m)

ZW 3LED DN - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical : 31 °
2.0’ (0.6 m)	97.0 fc (1044 lx)	1.1’ (0.3 m)
4.0’ (1.2 m)	24.2 fc (258 lx)	2.2’ (0.7 m)
6.0’ (1.8 m)	10.8 fc (118 lx)	3.3’ (1.0 m)
8.0’ (2.4 m)	6.1 fc (65 lx)	4.4’ (1.3 m)
10.0’ (3.1 m)	3.9 fc (43 lx)	5.6’ (1.7 m)
12.0’ (3.7 m)	2.7 fc (32 lx)	6.7’ (2.0 m)

ZW 3LED DN SS - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical : 36.2 °
2.0’ (0.6 m)	90.2 fc (971 lx)	1.3’ (0.4 m)
4.0’ (1.2 m)	22.6 fc (243 lx)	2.6’ (0.8 m)
6.0’ (1.8 m)	10.0 fc (108 lx)	3.9’ (1.2 m)
8.0’ (2.4 m)	5.6 fc (60 lx)	5.2’ (1.6 m)
10.0’ (3.1 m)	3.6 fc (39 lx)	6.5’ (2.0 m)
12.0’ (3.7 m)	2.5 fc (27 lx)	7.8’ (2.4 m)

Materials

Die-cast aluminum, 316 marine-grade stainless steel or copper body with stainless steel hardware and mounting bracket.

Socket

Socket contains MoistureBlock™ technology, preventing moisture from wicking up into sealed areas of the fixture.

LED

Integrated module with Cree LEDs. Gold-plated connectors and conformal coating for maximum reliability and corrosion resistance. Proprietary onboard intelligent driver uses firmware-controlled temperature regulation, maximizing LED life. Field upgradeable and replaceable, the LEDs are rated to 55,000 hrs. Maximum drive current: 1 A.

Wiring

18 AWG (1 mm); SPT-1W; 220°F (105°C); 300V; 10' (3 m) length

Power

Input 10-15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately).

Optics

Polycarbonate 2,700K color temperature adjustment lens included with fixture. Beam angle is calculated using LM-79 method for SSL fixtures.

Housing

Die-cast A380 aluminum, 316 marine-grade stainless steel or copper body with capacity for 1LED, 3LED, or ZDC integrated LEDs.

Lens

Tempered glass lens with shock resistance and high tolerance for thermal expansion and stress.

Hardware

Includes stainless steel mounting brackets for quick assembly.

Finish

Two-layer protection of sulfuric acid anodization and polyester TGIC powder coat, providing superior outdoor weathering in all conditions. Tested to ASTM standards. Also available in natural copper (CU) and natural stainless steel (SS).

Ambient Operating Temperature

-4°F to 104°F (-20°C to 40°C) [-40°F to 122°F (-40°C to 50°C) for SS finish

Weight

1.2 to 2.1 lbs. (0.5 to 1.0 kg)

Control

ZD or ZDC utilizes Luxor technology to zone fixtures in up to 250 groups, dim each group in 1% increments between 0 and 100%, or change to one of 30,000 colors with RGBW LEDs. Select the ZD option for zoning/dimming or ZDC for zoning/dimming/color. Standard fixture is zoneable with Luxor.

Installation Requirements

Designed for installation to a vertical surface.

Dark-Sky Compliance

Select a light source of 3,000K or lower to meet International Dark-Sky Association criteria. (DN)

Listings

ul-us

ul-nom

rohs

ip65

ida
