Overview

The MS comes to the FX LED line as an immediate favorite thanks to its close relative the MM. The MS takes all the great features of the MM and adds the energy efficiency and long life of LED. Changeable filters and available in Brass or Powder Coat allow you to add glow at night and during the day.

Quick Facts

Die-cast aluminum or brass
Two-layer marine-grade anodization and powder coat finish
Natural, powder coated, or antiqued brass finishes
Lumileds® Integrated LEDs
Compatible with Luxor® technology
Phase and PWM dimmable
Input voltage: 10-15V

Specs

Copy Link

MS Spec Chart

Output	1LED
Total Lumens^†	101
Input Voltage	10 to 15V
Input Power (W)	1.9
VA	2.2
Efficacy (Lumens/Watt)	56
Color Rendering Index (CRI)	84
Max Candela	53
Dimming	PWM, Phase**
Luxor Compatibility
Default	Zoning
ZD Option	Zoning/Dimming
Minimum Rated Life L70 (Hrs)	72,000

^† Measured using the 3,900K CCT lens. Multipliers for other CCTs include 0.80 (2,700K), 0.65 (4,500K), and 0.65 (5,200K).
** For optimal performance, use a trailing-edge, phase-cut dimmer.

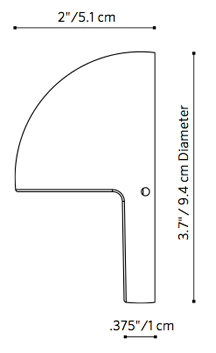

MS Dimensions

MS 1LED - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical : 68.4 °	Horizontal : 96.7 °
1' (0.3 m)	51.0 fc	1.4 ft	2.2 ft
2' (0.6 m)	12.8 fc	2.7 ft	4.5 ft
3' (0.9 m)	5.67 fc	4.1 ft	6.7 ft
4' (1.2 m)	3.19 fc	5.4 ft	9.0 ft
5' (1.5 m)	2.04 fc	6.8 ft	11.2 ft
6.0’ (1.8 m)	1.42 fc	8.2 ft	13.5 ft

Materials

Die-cast C360 brass or A380 aluminum faceplate and housing, with stainless steel hardware.

Socket

Socket contains MoistureBlock™ technology, preventing moisture from wicking up into sealed areas of the fixture.

LED

Integrated module with Cree LEDs. Gold-plated connectors and conformal coated for maximum reliability and corrosion resistance. Proprietary on-board intelligent driver uses firmware-controlled temperature regulation, maximizing LED life. Field upgradeable and replaceable, the LEDs are rated to 50,000 hrs. Maximum drive current: 1 A.

Wiring

18 AWG (1 mm); SPT-1W; 220°F (105°C); 300V; 10' (3 m) length.

Power

Input 10–15VAC/VDC 50/60Hz. Remote transformer required (specify separately).

Optics

Polycarbonate color temperature filters included with fixture: 2,700K (pre-installed) or 3,900K (clear frosted filter). Filters field serviceable.

Housing

Die-cast aluminum housing with capacity for 1LED integrated LEDs.

Faceplate

Die-cast brass or aluminum faceplate.

Lens

Frosted polycarbonate lens with high tolerance for thermal expansion, stress, and abuse.

Hardware

Two tamper-resistant setscrews included.

Finish

Selection of powder-coat, natural brass, or antique brass finish with brushed (Antique Bronze) or tumbled (Antique Tumbled) effect. Antique finishes sealed with a clear TGIC powder-coat layer. Two-layer protection of sulfuric acid anodization and polyester TGIC powder coat, providing superior outdoor weathering in all conditions.
