| Output |
1LED |
|---|
| Total Lumens†‡ |
4-39 |
| Input Voltage |
10 to 15V |
| Input Power (W) |
2.0 |
| VA |
2.4 |
| Efficacy (Lumens/Watt) |
8 |
| Color Rendering Index (CRI) |
80+ |
| Max Candela‡ |
24 |
| Dimming |
PWM, Phase** |
| RGBW Available |
No |
| Luxor Compatibility |
|
| Default |
Zoning |
| ZD Option |
Zoning/Dimming |
| ZDC Option |
-- |
| Minimum Rated Life (L90/B10) |
55,000 Hrs |
† Measured using the 3,900K CCT lens. Multipliers for other CCTs include 0.80 (2,700K), 0.65 (4,500K), and 0.65 (5,200K).

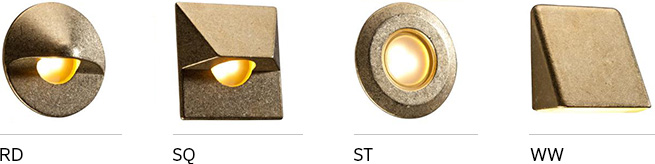

‡ Measured using the Round (RD) faceplate. Multipliers for other faceplates include: 1.0 (Square), 2.0 (Spot), and 0.4 (Wall Wash).
** For optimal performance, use a trailing-edge, phase-cut dimmer.
