| Output |
3LED |
3LEDT |
6LED |
9LED |
ZDC |
|---|
| Total Lumens† |
235 |
105 |
421 |
558 |
119 |
| Input Voltage |
10 to 15V |
10 to 15V |
10 to 15V |
10 to 15V |
11 to 15V |
| Input Power |
4.0 W |
4.2 W |
7.7 W |
11.1 W |
9.1 W |
| Power Consumption (VA) |
4.4 W |
4.5 W |
9.3 W |
12.2 W |
11.0 W |
| Efficacy (lm/W) |
60 |
430 |
55 |
51 |
23 |
| Color Rendering Index (CRI) |
83 |
-22 |
83 |
83 |
80+ |

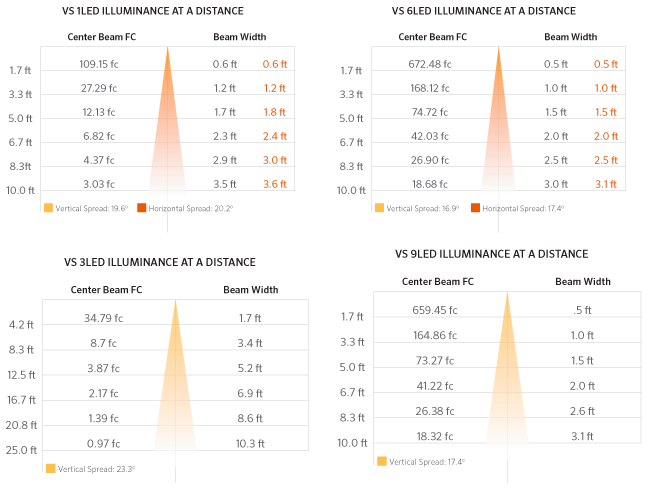

| Center Beam Candlepower* |
|
|
|
|
|
| Flood (35) |
547 |
498 |
1035 |
1294 |
196 |
| Dimming |
|
|
|
|
|
| Primary Dimming (Transformer) |
Consult transformer specifications |
| Secondary Dimming (Fixture) |
Phase-cut** |
Phase-cut** |
Phase-cut** |
Phase-cut** |
Luxor |
| RGBW Available |
No |
No |
No |
No |
Yes |
| Luxor Compatibility |
|
|
|
|
|
| Default |
Zoning |
-- |
Zoning |
Zoning |
Zoning |
| ZD Option |
Zoning/Dimming |
Zoning/Dimming |
Zoning/Dimming |
Zoning/Dimming |
-- |
| ZDC Option |
-- |
-- |
-- |
-- |
Zoning/Dimming/Color |
| Minimum Rated Life (L70) |
72,000 |
55,000 |
72,000 |
72,000 |
55,000 |
* Information for straight shroud available in IES files
** For optimal performance, use a trailing-edge, phase-cut dimmer
† Measured using the 2,700K CCT option
