FR | FX Luminaire

Product Tabs

Overview

The FR brings the elegance and performance of precious metals to FX Luminaire. As a close extension of the existing NR fixture, the FR’s smaller size ensures up to a 3LED output, with all the color filters, beam angles, and other features associated with FX Luminaire integrated LEDs.

Quick Facts

Copper/brass construction
Cree® Integrated LEDs
Natural copper/brass or antique finishes
ProAim™ adjustability
Color temperature filters
Compatible with Luxor® technology
Phase and PWM dimmable
Input voltage: 10-15V

Models

Copy Link

Spec Builder Output

Required accessory for CE compliance: GM-XX

Beam Angle Lenses

LENS OPTION	1LED	3LED	ZDC
Diffuser 18° (Preassembled)	770600	771300	N/A
Flood Lens 30-32° (1 notch)	1LEDFLLENS	3LEDFLLENS	N/A
Wide Flood Lens 56-58° (2 notches)	1LEDWFLLENS	3LEDWFLLENS	[default]

Note: Beam angle is defined as two times the vertical angle at which the intensity is 50% of the maximum. It is calculated using LM-79 method for SSL Luminaires.

Included Accessories & Parts

Includes LED board (1), choice of finish, 10' (3 m) lead wire, lock ring (1), spike (1), and color filters.

Specs

Copy Link

FR Spec Chart

Output	1LED	3LED	3LEDT	ZDC
Total Lumens†	93	216	105	113
Input Voltage	10 to 15V	10 to 15V	10 to 15V	11 to 15V
Input Power	1.9 W	4.0 W	4.2	6.0
Power Consumption (VA)	2.4 W	4.4 W	4.5	7.2
Efficacy (lm/W)	46	55	30	35
Color Rendering Index (CRI)	83	83	--	80+
Center Beam Candlepower*
Flood (35)	254	511	498	220
Dimming
Primary Dimming (Transformer)	Consult transformer specifications
Secondary Dimming (Fixture)	Phase-cut**	Phase-cut**	Phase-cut**	Luxor
RGBW Available	No	No	No	Yes
Luxor Compatibility
Default	Zoning	Zoning	--	Zoning
ZD Option	Zoning/Dimming	Zoning/Dimming	Zoning/Dimming	Zoning/Dimming
ZDC Option	--	--	--	Zoning/Dimming/Color
Minimum Rated Life (L70)	72,000 Hrs	72,000 Hrs	55,000 Hrs	55,000 Hrs

* Information available for angled shroud with IES files
** For optimal performance, use a trailing-edge, phase-cut dimmer
† Measured using the 2,700K option

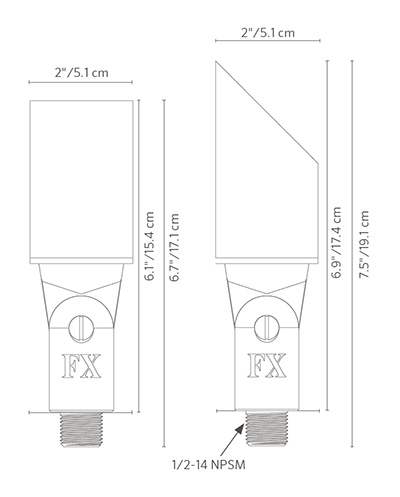

FR Dimensions

FR 1LED - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical: 30.3 °	Horizontal: °
4.0’ (1.2 m)	30.2 fc (325 lx)	2’ (0.5 m)
8.0’ (2.4 m)	7.5 fc (81 lx)	3’ (1.0 m)
12’ (3.7 m)	3.4 fc (37 lx)	5’ (1.4 m)
16.0’ (4.9 m)	1.9 fc (21 lx)	6’ (1.9 m)
20.0’ (6.1 m)	1.2 fc (13 lx)	8’ (2.4 m)
24.0’ (7.3 m)	0.8 fc (9 lx)	9’ (2.8 m)

FR 3LED - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical: 30.7 °	Horizontal: °
2.0’ (0.6 m)	32.9 fc (354 lx)	2’ (0.5 m)
4.0’ (1.2 m)	8.2 fc (88 lx)	3’ (1.0 m)
6.0’ (1.8 m)	3.7 fc (40 lx)	5’ (1.4 m)
8.0’ (2.4 m)	2.1 fc (23 lx)	6’ (1.9 m)
10.0’ (3.1 m)	1.3 fc (14 lx)	8’ (2.4 m)
12.0’ (3.7 m)	0.9 fc (10 lx)	9’ (2.8 m)

FR 3LEDT - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical: 31 °	Horizontal: °
2.0’ (0.6 m)	97.0 fc (1044 lx)	2’ (0.5 m)
4.0’ (1.2 m)	24.2 fc (258 lx)	3’ (1.0 m)
6.0’ (1.8 m)	10.8 fc (118 lx)	5’ (1.4 m)
8.0’ (2.4 m)	6.1 fc (65 lx)	6’ (1.9 m)
10.0’ (3.1 m)	3.9 fc (43 lx)	8’ (2.4 m)
12.0’ (3.7 m)	2.7 fc (32 lx)	9’ (2.8 m)

FR 3LEDT LS - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical: 36.2 °	Horizontal: °
2.0’ (0.6 m)	90.2 fc (971 lx)	1’ (0.4 m)
4.0’ (1.2 m)	22.6 fc (243 lx)	2’ (0.7 m)
6.0’ (1.8 m)	10.0 fc (108 lx)	4’ (1.1 m)
8.0’ (2.4 m)	5.6 fc (60 lx)	5’ (1.4 m)
10.0’ (3.1 m)	3.6 fc (39 lx)	6’ (1.8 m)
12.0’ (3.7 m)	2.5 fc (27 lx)	7’ (2.1 m)
