Overview

The NR is a copper and brass version of the popular NP up light, available in 1, 3, 6, or 9 LED. Its durable materials make it the perfect choice for coastal areas and other harsh environments. Four color filters are included with standard and ZD fixtures. ZDC compatibility is also an option, creating more than 30,000 custom colors with the Luxor ZDC controller (no filters required).

Quick Facts

Copper/brass construction
Cree® Integrated LEDs
Natural copper/brass or antique finishes
ProAim™ adjustability
Color temperature filters
Compatible with Luxor® technology
Phase and PWM dimmable
Input voltage: 10-15V

Models

Copy Link

Spec Builder Output

Required accessory for CE compliance: GM-XX

BEAM ANGLE LENSES


LENS OPTION	1LED	3LED	6/9LED
Diffuser 18° (Preassembled)	770600	771300	771600
Flood Lens 30-32° (1 notch)	1LEDFLLENS	3LEDFLLENS	9LEDFLLENS
Wide Flood Lens 56-58° (2 notches)	1LEDWFLLENS	3LEDWFLLENS	9LEDWFLLENS

Note: Beam angle is defined as two times the vertical angle at which the intensity is 50% of the maximum. It is calculated using LM-79 method for SSL Luminaires.

Included Accessories & Parts

Includes LED board (1), choice of finish, 10' (3 m) lead wire, lock ring (1), spike (1), and color filters.

Specs

Copy Link

NR Spec Chart

	3LED	6LED	9LED	ZDC
Total Lumens^† (lm)	225	490	600	140-480
Power Consumption (VA)	4.4	9.3	12.2	11.0
Efficacy (Lumens per Watt)	51	48	43	23
Correlated Color Temperature (CCT)	2700K	2700K	2700K	2700K
Beam Angle(s)^‡	35°	35°	35°	50°
Maximum Candelas (cd)	1,140	2,760	2,580	185
Color Rendering Index (CRI)	83	83	83	80+
Input Voltage (Vac/dc)	10-15	10-15	10-15	11-15
Dimming (Fixture)	Phase* or Luxor	Phase* or Luxor	Phase* or Luxor	Luxor
RGBW Available	No	No	No	Yes
Minimum Rated Life (L70)	72,000 hrs avg	72,000 hrs avg	72,000 hrs avg	55,000 hrs avg

* For optimal performance, use a trailing-edge, phase-cut dimmer
^† Photometric performance reported using the 2700K and Flood (35°) configuration; see .ies files for additional photometry information
^‡ The flood (35°) optic is pre-installed, with the 60° optic included in the product box

NR DIMENSION CHART

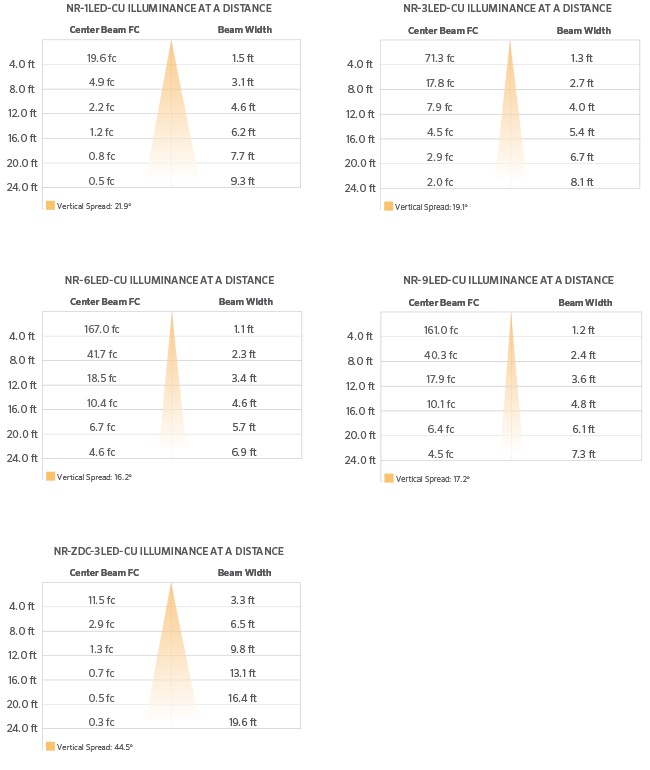

NR PHOTOMETRICS*

*Measured with the diffuser lens and amber filter assembled.

NR 1LED CU - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical : 21.9 °
4.0’ (1.2 m)	19.6 fc	1.5’
8.0’ (2.4 m)	4.9 fc	3.1’
12’ (3.7 m)	2.2 fc	4.6’
16.0’ (4.9 m)	1.2 fc	6.2’
20.0’ (6.1 m)	0.8 fc	7.7’
24.0’ (7.3 m)	0.5 fc	9.3’

NR 3LED CU - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical : 19.1 °
4.0’ (1.2 m)	71.3 fc	1.3’
8.0’ (2.4 m)	17.8 fc	2.7’
12’ (3.7 m)	7.9 fc	4.0’
16.0’ (4.9 m)	4.5 fc	5.4’
20.0’ (6.1 m)	2.9 fc	6.7’
24.0’ (7.3 m)	2.0 fc	8.1’

NR 6LED CU - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical : 16.2 °
4.0’ (1.2 m)	167 fc	1.1’
8.0’ (2.4 m)	41.7 fc	2.3’
12’ (3.7 m)	18.5 fc	3.4’
16.0’ (4.9 m)	10.4 fc	4.6’
20.0’ (6.1 m)	6.7 fc	5.7’
24.0’ (7.3 m)	4.6 fc	6.9’

NR 9LED CU - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical : 17.2 °
4.0’ (1.2 m)	161 fc	1.2’
8.0’ (2.4 m)	40.3 fc	2.4’
12’ (3.7 m)	17.9 fc	3.6’
16.0’ (4.9 m)	10.1 fc	4.8’
20.0’ (6.1 m)	6.4 fc	6.1’
24.0’ (7.3 m)	4.5 fc	7.3’

NR ZDC 3LED CU - Illuminance at a Distance

Distance	Center Beam fc	Beam Width
Feet (Meters)	Foot-Candles (Lux)	Vertical : 44.5 °
4.0’ (1.2 m)	11.5 fc	3.3’
8.0’ (2.4 m)	2.9 fc	6.5’
12’ (3.7 m)	1.3 fc	9.8’
16.0’ (4.9 m)	0.7 fc	13.1’
20.0’ (6.1 m)	0.5 fc	16.4’
24.0’ (7.3 m)	0.3 fc	19.6’
