Luxor - Setup Screen

Tabs

Read Article

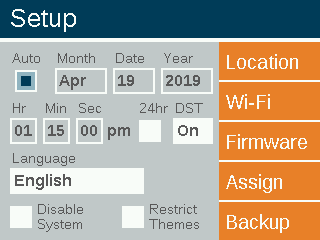

All background tools and settings (except color) are accessible in the Setup screen. Scroll through the various options to set up the controller.

Time/Date
  • Set the three time categories (Hr:Min:Sec) to the current time settings by pushing the scroll wheel when the appropriate field is highlighted, scrolling through the numeric options, and pressing the scroll wheel again to finalize the selection.
  • Turn past 12 on the hour ("Hr") setting to adjust a.m. and p.m., as displayed next to the seconds ("Sec").
  • To convert clock to 24-hour convention, select the “24hr” selection box.
  • Set the three date categories (Month, Day, Year) to the current date by pushing the scroll wheel when the appropriate field is highlighted, scrolling through the options, and pressing the scroll wheel again to finalize the selection.
  • Setting the month, day and year automatically sets the day of the week which appears to the right of the year.
  • Daylight Saving Time (DST), when activated, will adjust time forward or backward by one hour at the appropriate dates each year. To initiate it, select On. To deactivate it, select Off.
  • Select Auto to sync the Luxor time clock every 24 hours.
Language

In the Setup screen, select the language field by pressing the scroll wheel and turning it to the desired language. Press the scroll wheel again to finalize the selection.

  • The language change will not take effect until either the Back or the Home buttons are pressed.
Assign

When compatible fixtures are plugged in to the fixture programming ports, the assign screen will automatically display. The Assign screen is also accessible under the Setup menu.

Network

By default, the LAN tab will be displayed. The Wi-Fi or label will be displayed when the FX Luminaire Wi-Fi module (WIFIMOD2 or WIFIMOD2RMT) is inserted into the accessory port, labeled "WIFI" in the back of the facepack. For more information on using the Wi-Fi, refer to the separate owner’s manual for Luxor Wi-Fi.

Restrict

The restrict function prevents changes to themes.

  1. From the Home screen, navigate to the Setup and select Restrict Themes using the scroll wheel.
  2. To remove the restriction, deselect Restrict Themes.
Backup

The backup function saves all user input information, including programs, themes, colors, and setup data. To create a backup file for your Luxor, follow the steps below.

  1. Insert an SD card into the side of the facepack with the pins facing toward the front of the facepack.
  2. From the Home screen, navigate to the Setup and then Backup screens using the scroll wheel.
  3. Input a file name for the backup file. You do not need to use all available spaces.
  4. Press Backup.
  5. After backup is successful, press the SD card inward and then release to remove the card from the facepack.



Restore an existing file, follow steps below:

  1. Insert an SD card (pins facing the front) with the pre-loaded file into the side of the facepack. Press the card completely inward and then release. The card will lock into place.
  2. From the Home screen, navigate to the Setup and then Backup screens using the scroll wheel.
  3. Input the file name of the desired database to restore. The filename must match exactly.
  4. Press Restore.
  5. After a successful restore, press the SD card inward and then release to remove the card from the facepack.
