Up Lights

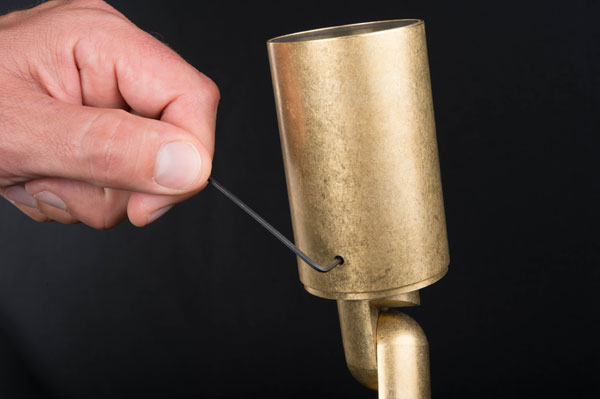

The LO requires the installer to loosen the allen screw (5/64) to access the lamp.

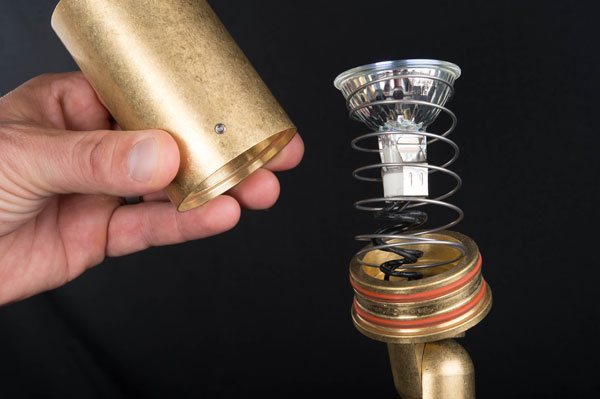

Once the screw is loosened, not removed completely, the lens cap can be removed by shifting back and forth.

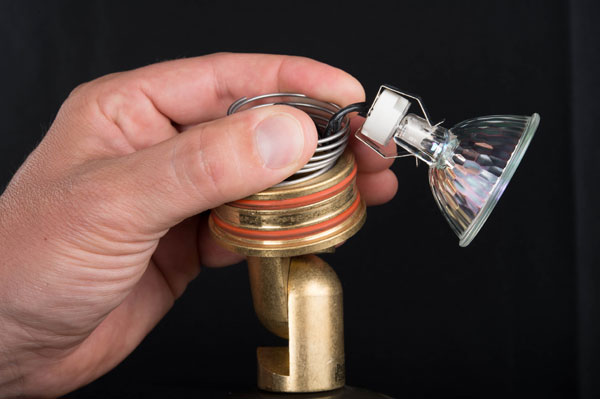

Compress the lamp spring with one hand while pulling the lamp socket out to begin the replacement process.

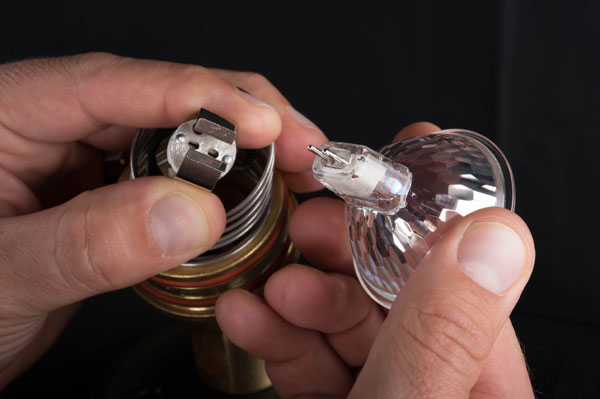

Holding the socket pull the lamp out. Examine the socket holes before installing the new lamp.
