LX - Components

Tabs

Read Article

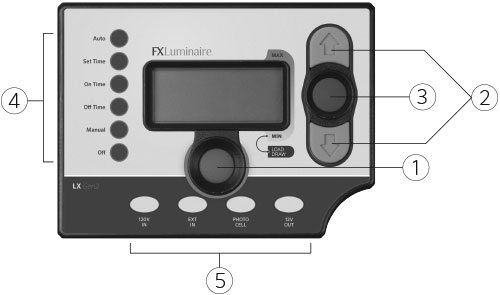

Control Buttons

  1. Mode Selector
  2. Arrow Up and Down - Increases value or decreases value
  3. Enter Button
  4. Left Row

    Auto - Program is running
    Set Time - Set current time and day
    On Time - Set time for light initiation by time and day for each program (A-F)
    Off Time - Set time for lights off by time and day for each program (A-F)
    Manual - Set duration of lights on manual mode
    Off - System off (3 seconds before initiates)

  5. Bottom Row

    120VAC IN - Green indicates powered unit and incoming voltage is 108V or above. Red indicates incoming voltage is below 108V.
    EXT IN - Green indicates when a signal is received on the EXT IN port from 1-24V that has caused the lights to initiate.
    PHOTOCELL - Green indicates luminaires ON due to photocell.
    12V OUT - Green indicates controller sending power to luminaires. Red indicates overload detected.

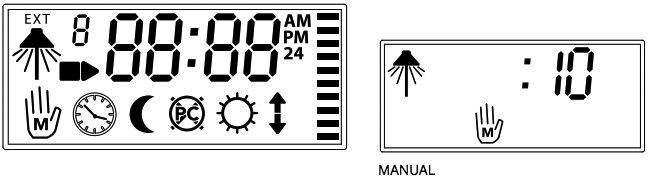

LCD Screen Symbol Guide

The sun next to an up arrow Indicates dawn setting A circle with PC inside with a sun next to it System is detecting daylight
The sun next to a down arrow Indicates dusk setting A circle with PC inside with a moon System is detecting nighttime or lack of light
The functioning digital clock in the center of the LX display Indicates the time of day, start or stop time. In manual mode indicates the remaining duration Circle with PC inside and crossed out with an X Photocell not installed
A clock with a sold play icon, indicating ON During setting, indicates the ON TIME function A series of bars indicating electrical load Indicates electrical load being used by system (each bar represents 10%)
A clock with a sold square indicating STOP During setting, indicates the OFF TIME function EXT Indicates that the EXT input is active
Hand with letter M System is operating in manual (owner-operated) mode Path light with light shining Indicates Lights and Program are running
