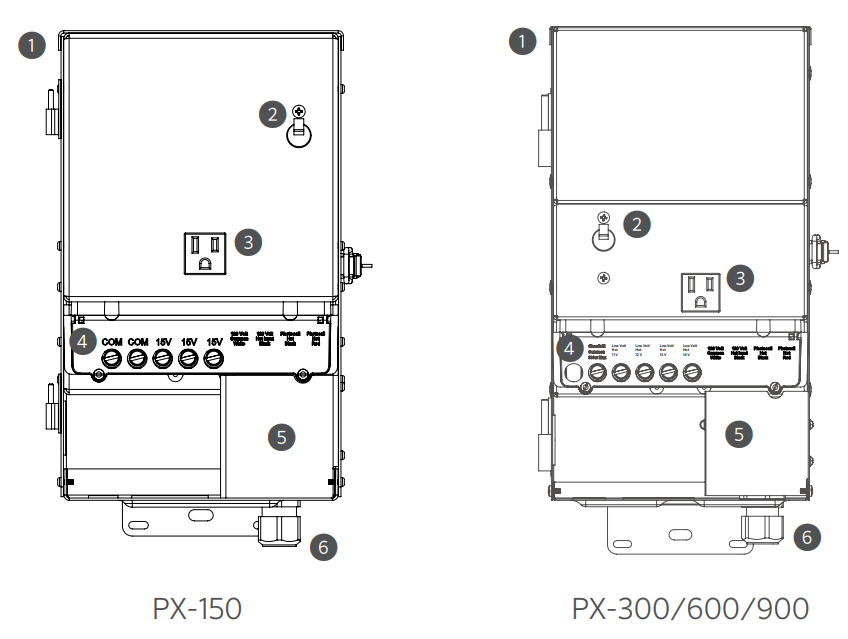

- 304 stainless steel cabinet
- Magnetic circuit breaker
- 120 V accessory receptacle
- Terminal block
- 120 V wiring compartment cover
- 120 V power cord 6' (1.8 m)
This power supply is for use with landscape lighting systems only. Do not submerge the transformer.
- Do not connect two or more power supplies in parallel.
- For outdoor use only.
- For use in enclosures only with provided conduit adaptor plate.
- The National Electrical Code requires that wiring concealed or extended through a building wall must be enclosed in conduit.
- The transformer should be mounted close to the power supply. Extension cords should not be used with this unit.
WARNING: To reduce the risk of electric shock, use only with low-voltage landscape fixtures and accessories. Do not use with swimming pool or spa lighting fixtures. Install the power unit in enclosures or on surfaces that are not combustible. To reduce the risk of electric shock, install the power unit 5' (1.5 m) or more from a pool, spa, or fountain. When the power unit is installed (a) indoors within 10' (3.0 m) of a pool, spa, or fountain or (b) outdoors, connect the power unit to a receptacle protected by a GFCI. Do not energize the transformer until installation of the system is complete.
Transformer load
To determine the transformer size you will need, add up the wattages of all the lamps you plan to use. Select a transformer wattage in excess of the required load. Generally, the total lamp load should not be less than one-third of the transformer’s wattage rating, nor exceed its maximum wattage capacity. If your total wattage is too high, divide the load between two transformers.
| Transformer |
Max Wattage |
Max Output |
Max Input |
| PX-150 |
150 VA |
12.5 A |
1.25 A |
| PX-300 |
300 VA |
25 A |
2.5 A |
| PX-600 |
600 VA |
50 A |
5.0 A |
| PX-900 |
900 VA |
75 A |
7.5 A |
