Luxor CUBE

Luxor CUBE and Relay Wiring Diagrams

Tabs

Read Article
Luxor CUBE

TYPE MODEL NO MAX LOAD SUPPORTS* NOTES DIAGRAM
Low Voltage LCM-LV 60W / 5A AC Dimmable LEDs   Diagram A
      Incandescent Alternate LV power source required Diagram B
High Voltage LCM-HV 400W / 3.3A AC Lighting (LED and Incandescent) Alternate HV power source required Diagram C
Relay / 0-10V LCM-RLY-010V 250VAC / 5A Relay switch   Diagram D/E

*See installation instructions for restrictions and advisory information

[A] LOW VOLTAGE DIMMABLE LED FIXTURES

[B] LOW VOLTAGE INCANDESCENT - 12V TRANSFORMER

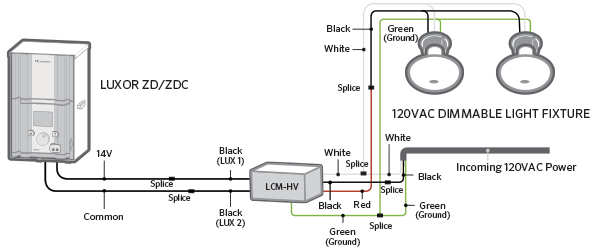

[C] HIGH VOLTAGE FIXTURES

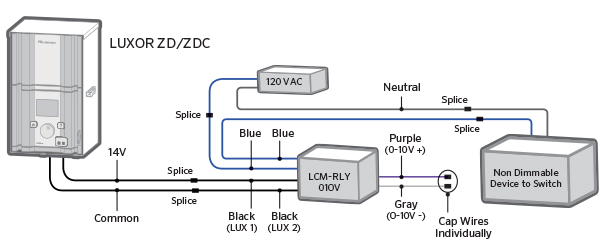

[D] RELAY

[E] 0-10V Dimmable Power Supply
