Xenon G4 Lamp Replacement Instructions

Xenon G4 Lamp Replacement Instructions

Product Lines:

Incandescent Path Lights,

Path Lights

Topics:

Installation

STEP ONE	STEP TWO
FX Incandescent pathlights have a top assembly held into place by two rubber o-rings (P/N 250010280004). Holding the riser with one hand, gently work the top assembly from side to side to remove.	Once the top assembly is removed the lamp is now visible and the rest is simple.
STEP THREE	STEP FOUR
Lamps can be hot if they have just recently blown so be careful not to burn your fingers when pulling the old lamp out.	Once removed it's a good idea to get a visual on the pin holes as not to bend the new lamp pins when installing the replacement.

STEP ONE

STEP TWO

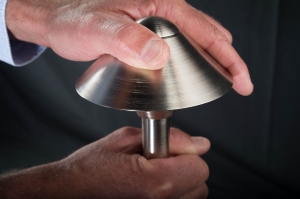

FX Incandescent pathlights have a top assembly held into place by two rubber o-rings (P/N 250010280004). Holding the riser with one hand, gently work the top assembly from side to side to remove.

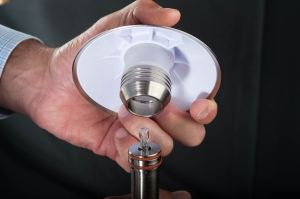

Once the top assembly is removed the lamp is now visible and the rest is simple.

STEP THREE

STEP FOUR

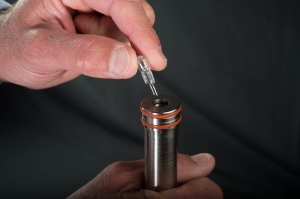

Lamps can be hot if they have just recently blown so be careful not to burn your fingers when pulling the old lamp out.

Once removed it's a good idea to get a visual on the pin holes as not to bend the new lamp pins when installing the replacement.
