Changing Lamps on an FX MD Down Light

Tabs

Read Article
STEP ONE STEP TWO

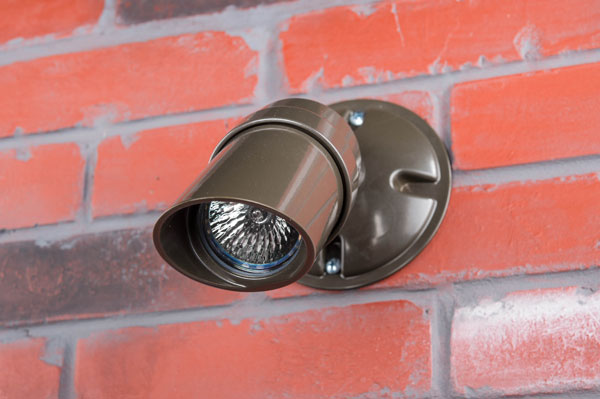

FX Down Lights utilize an MR-16 lamp. This lamp is easy to change once the lens cap is removed. It may be a good idea to do this with the fixture turned off at the transformer.

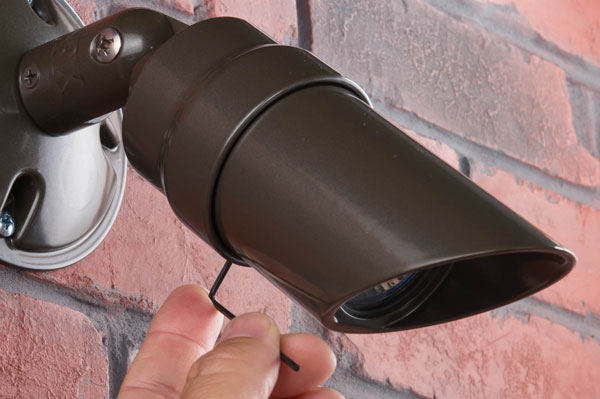

The lens cap can be removed by carefully shifting back and forth after the lower allen screw (5/64) has been loosened.

STEP THREE STEP FOUR

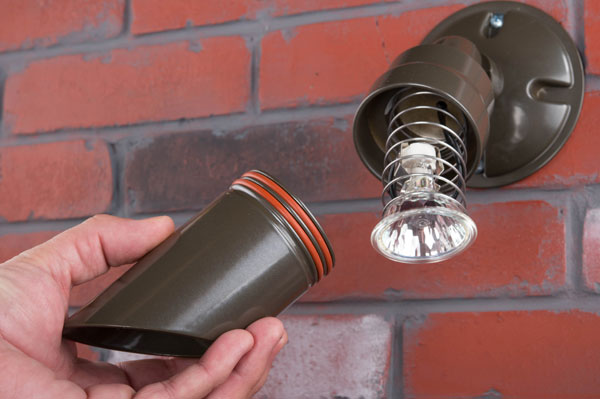

Once removed you should now be able to get a visual on the MR-16 lamp your set to replace.

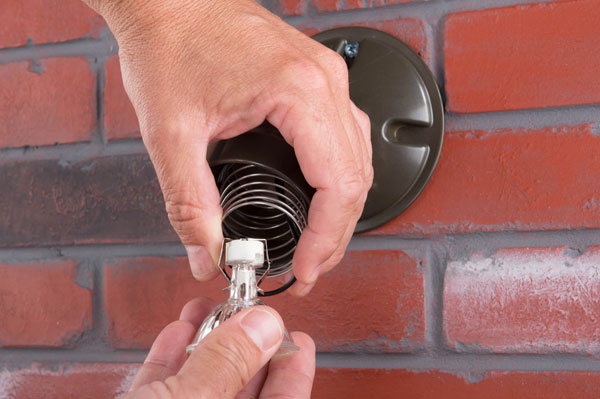

Holding the socket spring with one hand, keep compressed to make lamp removal easier.

STEP FIVE

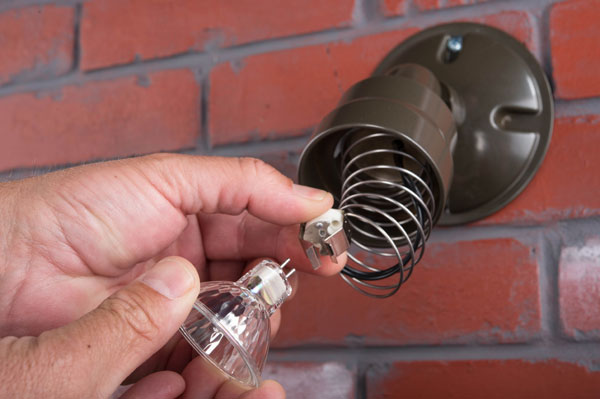

The MR-16 lamp has two pins that plug into the socket, examine these pin hole positions before replacing the lamp.
