Introducing Luxor

Luxor front

Introducing Luxor

Create any ambiance, any time.

With Luxor, lights don't simply turn on and off. They come alive.

Luxor offers both zoning and dimming capabilities that provide virtually limitless design possibilities. Zoning allows lights to be programmed into preset vignettes, which can be activated for special occasions such as parties, or activities such as barbequing. Dimming allows lights to automatically emit any desired illumination percentage anytime, anywhere within a system. So, Group 1 can be set to 100% illumination at 7:00 p.m., and automatically shift to 60% at 9:00 p.m., and so on.

Luxor's proprietary ZD Technology™ makes it the most versatile, affordable, and easy-to-use zoning and dimming control system ever created. It's the clear choice for the professional designer, and the most discerning clients.

Learn more




Features

Virtual Lighting Controller

Up Lights Wall Lights Path Lights


How Dimming Works with Luxor

Move the controls up and down to simulate the capabilities of Luxor.

Every FX ZD Fixture attached to the Luxor can now be adjusted throughout the night using Groups which are called to action using diming and the exact time you set.

Create up to 250 independently adjustable lighting groups. You could set up each light as its own group to control each one independently. You could even set up a group for all path lights or all lights around your driveway. It's all up to you.


Extend the living space with Luxor

Extending the living space

A living space changes throughout the night depending on your activity. Using Luxor, you can illuminate a seating area, dining table, or spa at different times of the night or even on different days. Your lighting system should cater to your lifestyle, using Luxor you can create myriads of scenes catered to the person and landscape.

Map of The United States

Astronomical Timing

Astronomical timing is one of the best ways to turn on and off a lighting system without the need of a photocell. At FX we created an easy to use map placement feature that places your location. No more numbers, zip codes, or manuals to read, just point to your location.



Back to top



Setup



Event-based Timing

No longer is a system just on or off. Event-based timing allows a single group of lights to change dimming percentages throughout the night.

Move your mouse from left to right over the chart above to simulate how different groups can have a dramatic effect on a space. At dusk, your lights could automatically come on. With the help of Astronomical Timing, Luxor understands the position of the sun, starting a program as the sun goes down and ending it as the sun comes up.

Setup Display from Luxor

Ease of setup

With only two wires to connect each fixture nothing changes on setup with Luxor. Communication is sent over the same wires that are used to power each light using any wiring technique you choose.

Pre-set up themes

Change a set of Groups as one by setting it up as a Theme. Adjust it for the Seasons, or have setting for when it’s time to have an outdoor movie night.

Themes allow quick and easy call up of a set of Groups at predetermined intensity levels.

Designer-business opportunity

A great lighting system has to be maintained throughout the year. Now every project is a living system that can be updated from season to season or as a landscape environment grows. Instead of just re-aiming lights, lights can be pulled together in an ever changing symphony of events.



Back to top



Quick Specs

Models: 150 or 300 Watt
Finish options: Stainless Steel or Paintable Matte Gray
Depth: 5" / 12.7cm
Width: 8" / 20.3 cm
Height: 13" / 33 cm

Learn more

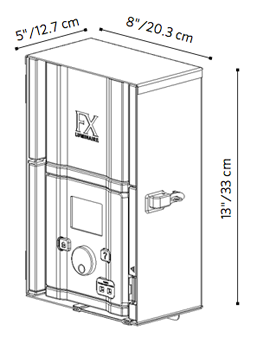

Luxor Dimensions

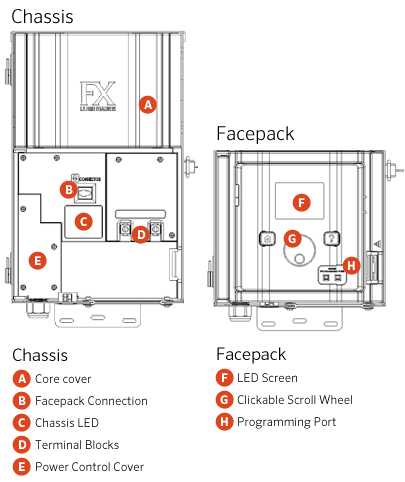

Luxor details
